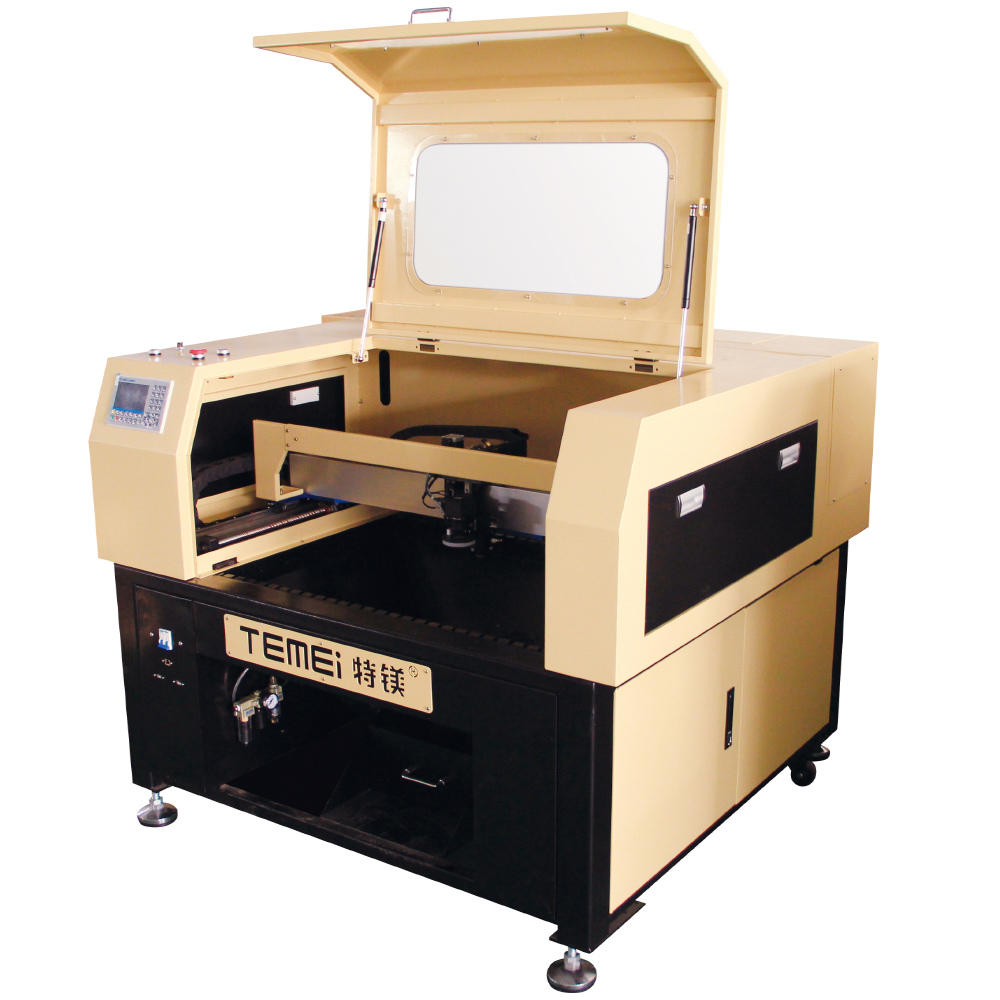

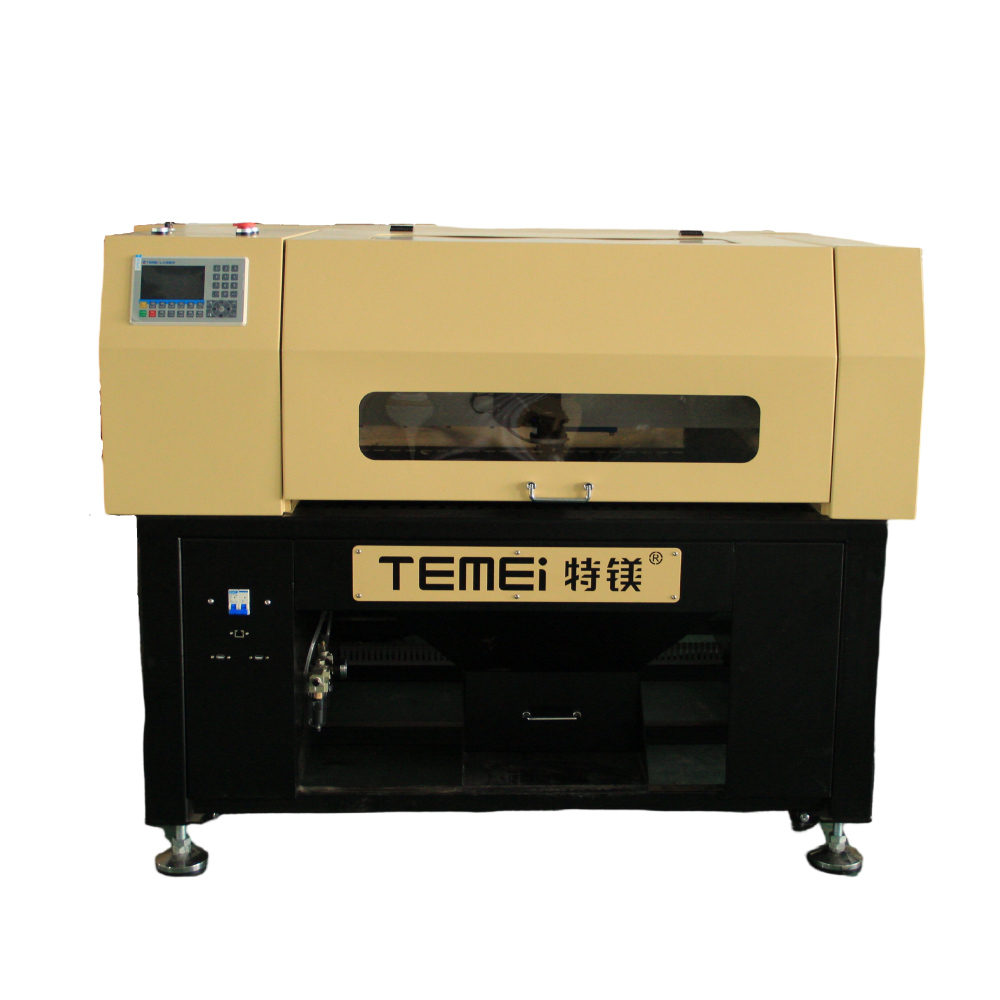

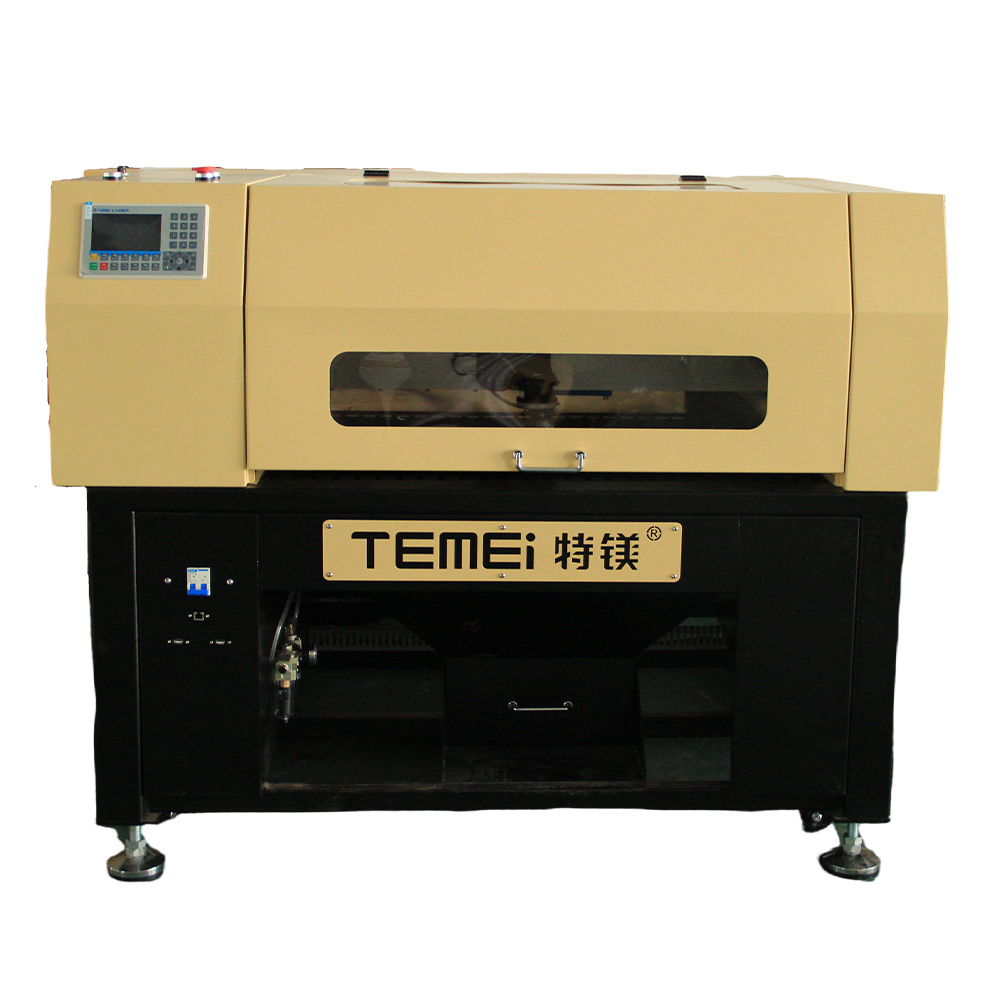

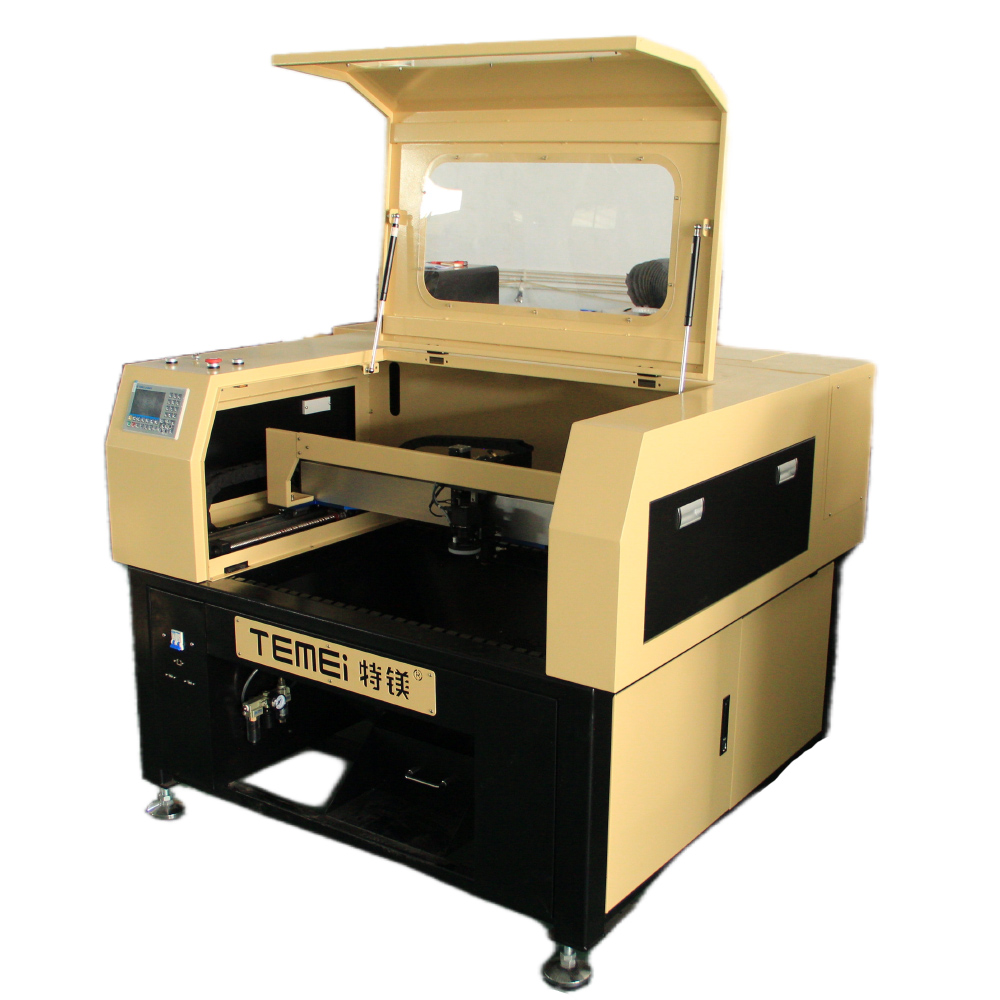

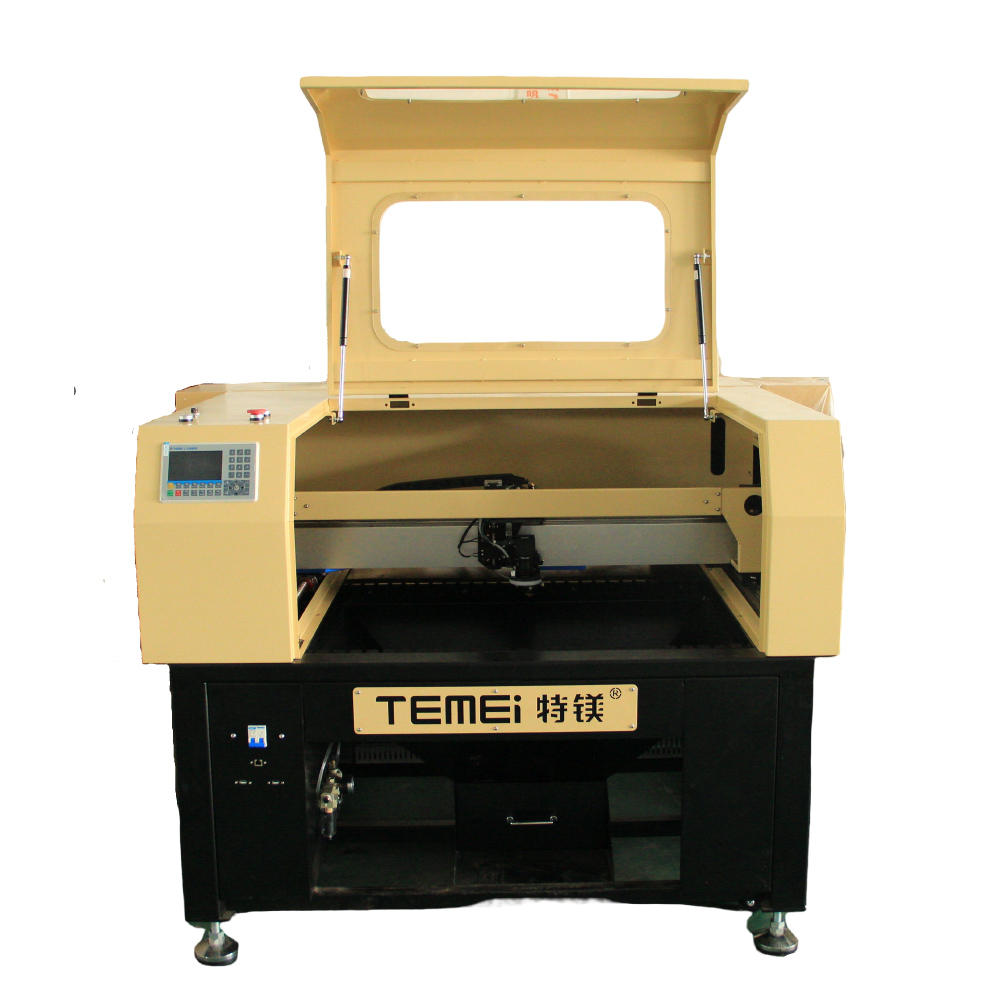

T9-L6090SCCD- Laser cutting machine
Dimensions: 1430*1300*1200mm
Acrylic cutting thickness: ≤38mm
Processing area: 600x900mm
Drive system: imported servo motor
Maximum speed: 2000mm/min
Transmission system: imported screw + imported guide rail
Power supply: 220V50Hz20A
Air supply requirements: dry and clean air 0.6MPa
Cooling system: Professional chiller
Laser: 100WCO. Laser tube
Working environment: 0~40°C relative humidity 10~90%
Weight: 500KG
Graphics supported formats: BMP/GIF/PEG/PCX/TGA/TIFF/PLT/CDR/DWG/DXF
Applicable materials: cloth/leather/rubber/paper/bamboo/wood products/crystal/Plexiglass/tile/marble/plastic/film/canvas, etc
Applicable industries: large format truncation/leather industry/shoes industry/decoration industry/furniture industry/packaging and printing board industry/model industry/craft gifts, etc
- Information
- Video
- Related Products
Acrylic cutting thickness: ≤38mm
Processing area: 600x900mm
Drive system: imported servo motor
Maximum speed: 2000mm/min
Transmission system: imported screw + imported guide rail
Power supply: 220V50Hz20A
Air supply requirements: dry and clean air 0.6MPa
Cooling system: Professional chiller
Laser: 100WCO. Laser tube
Working environment: 0~40°C relative humidity 10~90%
Weight: 500KG
Graphics supported formats: BMP/GIF/PEG/PCX/TGA/TIFF/PLT/CDR/DWG/DXF
Applicable materials: cloth/leather/rubber/paper/bamboo/wood products/crystal/Plexiglass/tile/marble/plastic/film/canvas, etc
Applicable industries: large format truncation/leather industry/shoes industry/decoration industry/furniture industry/packaging and printing board industry/model industry/craft gifts, etc
